AIRFOB HARDWARE

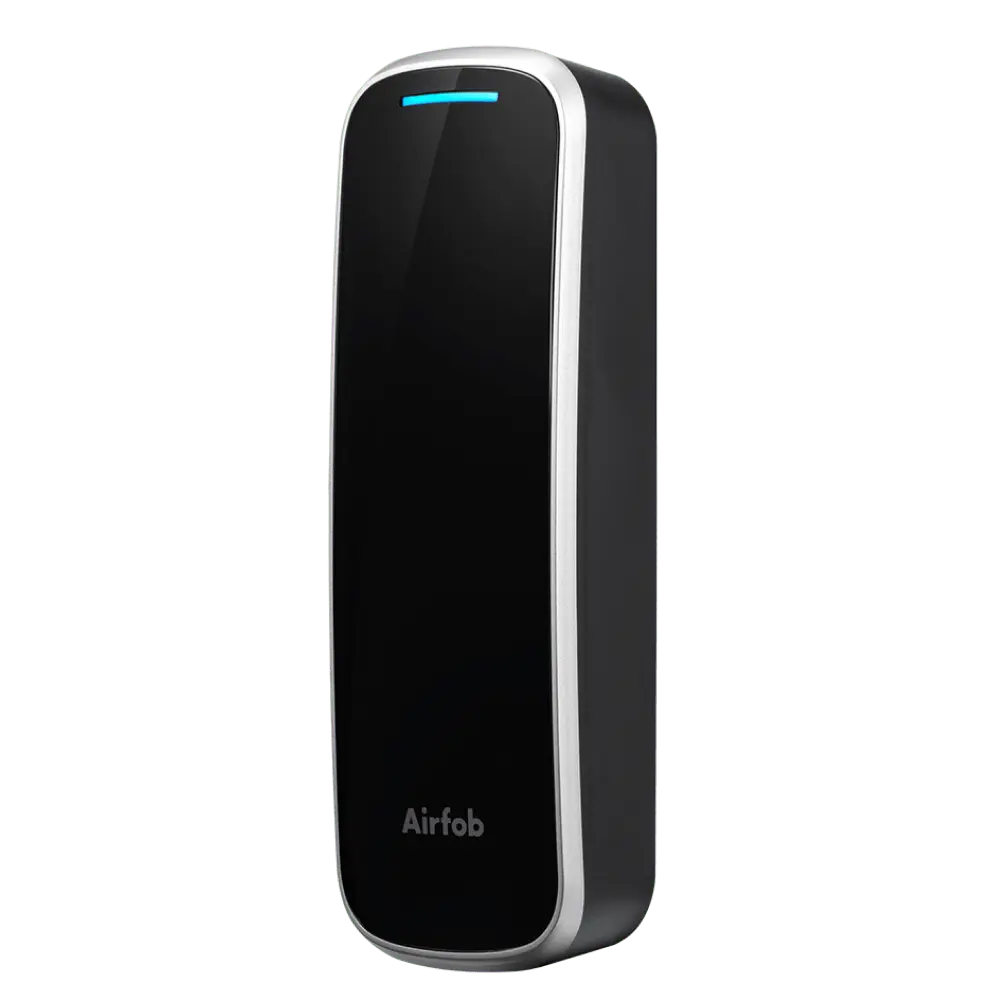

Airfob Edge Reader Ultimate

This compact yet powerful Airfob Space compatible outdoor reader is easy to set up and use and includes all the extras you’ll need, including IP67 water resistance and Power Over Ethernet.

BLE/NFC/RFID

compatible

POE

standard

IP65/IP67

water resistant

IK08

protected

CREDENTIALS

Unlock, your way.

Airfob provides an extensive range of access standards, offering ample choices to suit your preferences. Credentials are FREE and UNLIMITED.

Mobile credentials

Highest security and convenience. Offers scalability and flexibility for modern access control needs.

RFID Cards / Fobs

Reliable and widely used access credentials. Supports 13.56 Mhz RFID cards.

In-app Unlock

Remote unlock any chosen door from your phone with the push of a button.

QR Pass

Convenient and versatile app-less access credentials. Flash a secured QR code on a QR reader connected to Airfob Edge Reader to open the door.

New

Link Pass

Innovative access solution offering secure and easy app-less access via web links. Ideal for quick and temporary access provisioning.

New

Native Wallet

Modern and secure access credential stored on mobile devices. Offers convenience and flexibility, use your phone or smart watch to unlock the door.

Coming Soon

BENEFITS

Connect every door to the cloud.

100% Cloud-Managed.

Connect our readers to the power and the network. Register them with the Airfob Pro app, and you’re ready to go! No local servers required.

NO Door Controllers.

Airfob readers eliminate the need for separate door controllers by integrating a built-in relay function in each reader. You need a new door? Just a add a new Airfob Reader.

NO Extensive Wiring.

Say goodbye to kms of cables. Because of their built-in relay, Airfob Readers only require power and a network connection (POE support). No need for costly RS485 cabling or complex overhaul.

Offline Mode Support.

Manage all you access online, remotely, weather our readers are online or offline. Only available when using mobile credentials.

Enterprise security.

Every connection is secured with a new one-time encryption key, similar to a one-time-pass (OTP), which terminates immediately after each data transfer.

NO More Patch Fridays.

There’s no software for your customers to maintain, and they always get the latest version, automatically. Update all your devices firmware remotely, at once.

Product Specifications

125kHz Card Compatibility
EM

13.56MHz Card Compatibility
MIFARE, MIFARE Plus, DESFire/EV1, FeliCa

CPU
1.0GHz

Memory
4GB Flash + 64MB SDRAM

Mobile Card
NFC, BLE

IP Rating
IP65, IP67

IK Rating
IK08

Ethernet
10/100 Mbps, auto MDI/MDI-X

RS-485
1ch Master or Slave

Wiegand
1ch Input or Output

TTL
2ch Input

Relay
1 Relay

POE
IEEE 802.3af compliant

Sound
Multi-tone Buzzer

Operating Temperature
-20°C ~ 50°C

Operating Humidity
0% ~ 95%, non-condensing

Power
DC 12V

Size (WxHxD, mm)
48 x 145 x 27

Certifications
CE, FCC, KC, RoHS, REACH, WEEE, SIG, TELEC, UKCA

GET STARTED

World's easiest installation.

Connect our readers to the power and the network. Register them with the Airfob Pro app, and you’re ready to go! No homerun wiring needed.

CONFIGURATIONS

Unlock Endless Possibilities.

Tailor your access control system to meet the unique needs of your facility, ensuring both security and convenience for users

Dual Reader Setup

Remote Exit Control

Sensor-Based Exit

Dual Reader Setup for Enhanced Entry and Exit Control.

Utilize the Airfob Edge Reader Ultimate (outdoor model) for secure entry and the Airfob Edge Reader (indoor model) for controlled exit. This configuration provides robust security and ensures seamless access management from both entry and exit points, ideal for environments where security and Time & Attendance tracking are equally important.

Simplified Entry with Remote Exit Control.

Install the Airfob Edge Reader Ultimate at the entry for secure access and an Airfob Tag on the exit for a cost-effective, minimalistic solution. Users can easily exit by tapping their mobile credentials near the Airfob Tag, which communicates with the cloud to trigger the entry reader to unlock the door, maintaining security without additional wiring or equipment. Supports T&A tracking.

Optimal Access Control with Sensor-Based Exit

Pair the Airfob Edge Reader Ultimate on entry with a sensor or exit button for an intuitive and straightforward exit solution. This setup is ideal for high-traffic areas where quick, hands-free exits are needed, providing a balance of security and convenience without requiring mobile credentials or physical interaction for exiting.

QUALITY CONTROL

Long standing manufacturing experience.

All of our readers are made in a state-of-the-art factory in South Korea. Yes, it costs a bit more, but the result is a device that works straight out of the box and is proven to last for years.

CONNECT

Native integration with IP CCTV cameras.

Airfob now supports IP cameras so that you can easily set up a door-centric surveillance strategy without any complex wiring or additional hardware required. All you need is a network connection between Airfob’s readers and your IP cameras.

CUSTOMIZE

Our readers, your brand.

Transform our readers into an extension of your brand. Make a lasting impression on users as they interact with your branded access points, merging cutting-edge technology with a personalized touch. Create a cohesive experience that seamlessly integrates security with style.
